QualiCTG-I Coating Thickness Gauge can measure the thickness of non-conductive cladding of metallic surface and ferromagnetic metal (e.g. iron, nickel, cobalt) surface without, including measuring the thickness of iron, stainless steel surface paint or galvanized layer, and measuring the thickness of plastic film of aluminum and copper surface paint.
Applications

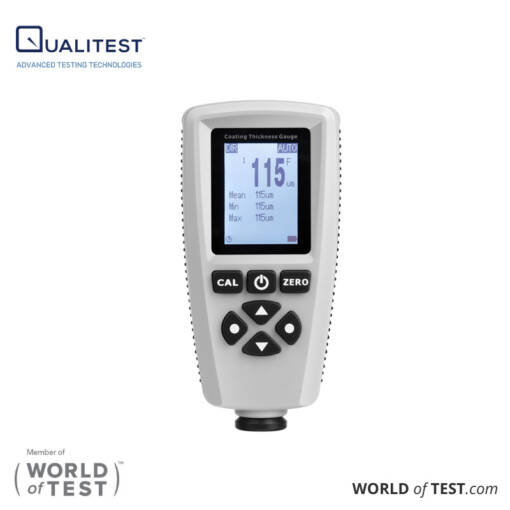

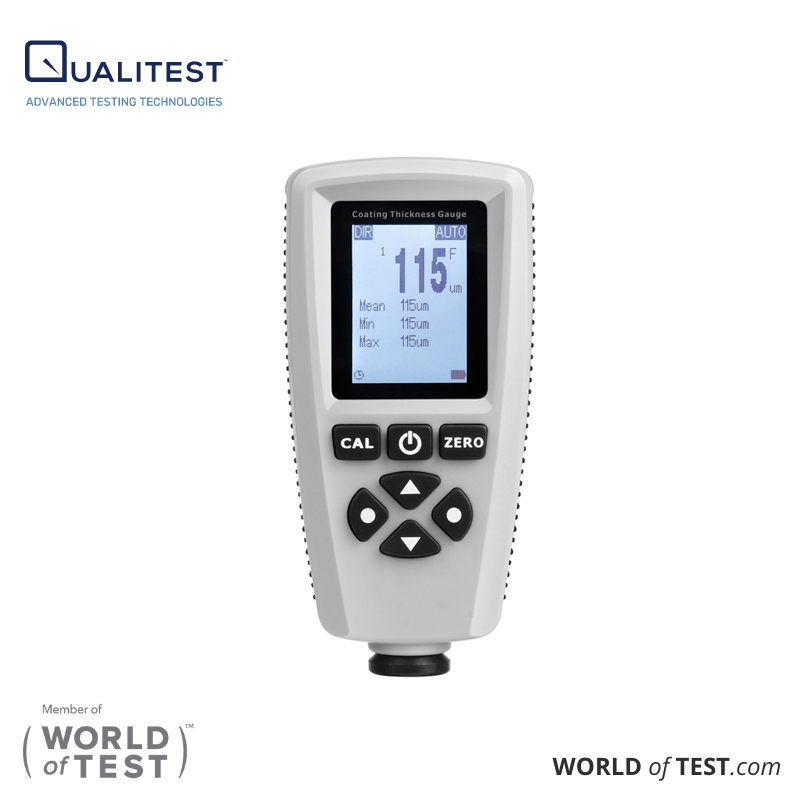

Coating Thickness Gauge QualiCTG-I Overview
QualiCTG-I built-in magnetic sensor and eddy current effect integrated probe, with a measurement range of 0~2000m and the measurement accuracy of ± (2.5% + 1μm), and its resolution is up to 0.1μm. When measuring, the user only needs to fit the probe and the end quickly, the surface of the measured object, in the process of contracting the probe into the equipment, the equipment can automatically distinguish the substrate properties and measure the thickness of the coating (plating) layer.
The QualiCTG-I has a streamlined menu and data display interface that displays the average, maximum, and minimum values, and indicates and alert data overrun. In addition, the device contains large-capacity memory. During the measurement process, the equipment can count and record the measurement results. The recorded data can be transmitted to the computer via the USB data cable.
 |
 |
 |
Applications:
- Car paint testing
- Metal antirust treatment
- Film thickness detection
- Hardware parts processing
 |
 |
Features/Advantages
Coating Thickness Gauge QualiCTG-I Features
- Ruby wear-resistant probe
- Supports USB data transfer
- Upgrade device firmware by USB
- Accuracy ±(2.5% + 1μm)
- The highest resolution is 0.1μm
- Measurement range from 0 to 2,000μm
- Minimum, maximum, and mean values available
- Red backlight over-limit alarm
- Standardized menu interface
- Support for user calibration
- Reaction time less than 0.5s
- Manual rotation screen
- Auto shut off
- Battery protection
Technical Specifications
Coating Thickness Gauge QualiCTG-I Technical Specifications
| Model | QualiCTG-I Coating Thickness Gauge |
|---|---|
| Measuring principle | Fe: Magnetic induction; NFe: Eddy current |
| Measuring range | 0~2000μm |
| Accuracy | ±(2.5%+1μm) |
| Resolution ratio | 0.1μm (0~99.9μm); 1μm (≥100μm) |
| Units | μm, mm, mil |
| User calibration | Zero calibration, point calibration |
| Statistic | Number of data, maximum, minimum, mean, standard variance |
| USB data transmission | Supported |
| Data Storage | 320 measurements |
| Probe trigger force | 0.3~0.8N |
| Minimum radius of curvature of the substrate | Convex surface 5mm; Concave surface 25mm |
| Minimum measurement area | Diameter 15mm |
| Minimum substrate thickness | Fe: 0.30mm;NFe: 0.05mm |
| Reaction time | < 0.5 seconds |
| LCD | Dot array LCD screen |
| Operational environment | Temperature: -10~ +50°C; Humidity: 20~90%RH (non-condensation) |
| Storage environment | Temperature: -20~ +60°C; Humidity: 20~90%RH (non-condensation) |
| Battery | 2 pcs 1.5V alkaline batteries; 2 pcs 1.2V rechargeable batteries |
| Levels of protection | IP40 |
| Dimension | 114*53*25mm |
| Case material | ABS |
| Weight | 80g (without the battery) |
Note:
- Avoid sun exposure.
- Avoid direct contact with corrosive chemicals.
- Avoid dropping on floor.
